商品

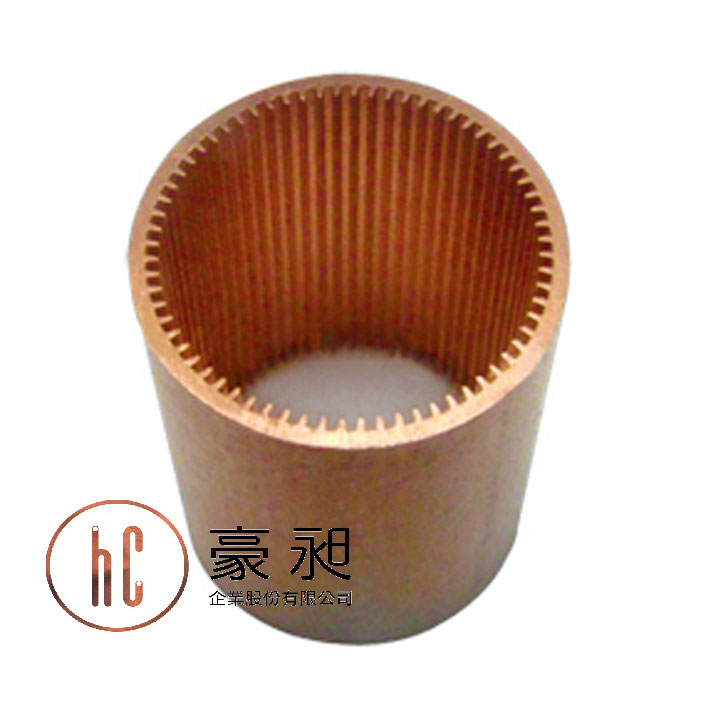

溝槽管
- 採用日本優質紅銅材-住友之C1020最高純度無氧銅
- 可配合客製化各式規格尺寸，尺寸範圍：OD4~OD12
- 溝槽管齒數：40齒~138齒
- 溝槽管厚度：0.15mm~0.4mm
商品規格:
|
規格(MM) |
外徑(MM) |
外徑公差(MM) |
壁厚 |
壁厚 公差 |
齒高 |
齒高公差(MM) |
齒數 |
|
4.0*0.3*0.2*55N*2.4M |
4.0 |
±0.03 |
0.3 |
±0.03 |
0.2 |
±0.03 |
55 |
|
5.0*0.15*0.05*110N*2.4M |
5.0 |
±0.03 |
0.15 |
±0.03 |
0.05 |
±0.03 |
110 |
|
5.0*0.32*0.23*55N*2.4M |
5.0 |
±0.03 |
0.32 |
±0.03 |
0.23 |
±0.03 |
55 |
|
6.0*0.15*0.05*110N*2.4M |
6.0 |
±0.03 |
0.25 |
±0.03 |
0.05 |
±0.03 |
110 |
|
6.0*0.2*0.05*110N*2.4M |
6.0 |
±0.03 |
0.2 |
±0.03 |
0.05 |
±0.03 |
110 |
|
6.0*0.25*0.25*60N*2.4M |
6.0 |
±0.03 |
0.25 |
±0.03 |
0.25 |
±0.03 |
60 |
|
6.0*0.32*0.25*55N*2.4M |
6.0 |
±0.03 |
0.32 |
±0.03 |
0.25 |
±0.03 |
55 |
|
8.0*0.2*0.05*130N*2.4M |
8.0 |
±0.03 |
0.2 |
±0.03 |
0.05 |
±0.03 |
130 |
|
8.0*0.22*0.12*86N*2.4M |
8.0 |
±0.03 |
0.22 |
±0.03 |
0.12 |
±0.03 |
86 |
|
8.0*0.25*0.1*176N*2.4M |
8.0 |
±0.03 |
0.25 |
±0.03 |
0.1 |
±0.03 |
176 |
|
8.0*0.25*0.25*68N*2.4M |
8.0 |
±0.03 |
0.25 |
±0.03 |
0.25 |
±0.03 |
68 |
|
8.0*0.32*0.25*68N*2.4M |
8.0 |
±0.03 |
0.32 |
±0.03 |
0.25 |
±0.03 |
68 |
|
8.0*0.35*0.25*68N*2.4M |
8.0 |
±0.03 |
0.35 |
±0.03 |
0.25 |
±0.03 |
68 |
|
10.0*0.3*0.15*110N*2.4M |
10.0 |
±0.03 |
0.3 |
±0.03 |
0.15 |
±0.03 |
110 |
|
10.0*0.4*0.2*95N*2.4M |
10.0 |
±0.03 |
0.4 |
±0.03 |
0.2 |
±0.03 |
95 |
|
12.0*0.4*0.15*110N*2.4M |
12.0 |
±0.03 |
0.4 |
±0.03 |
0.15 |
±0.03 |
110 |
